Blue Team Report: Endpoint Detection & Response  (FIN7)

• Project: 02-Endpoint-Threat-Detection

• Author: TrilloSec

• Date: 2025-02-23

1. Executive Summary

1.1 Purpose

The purpose of this Blue Team report is to assess, detect, and respond to the emulated FIN7 threat scenario targeting endpoint systems. This simulation aimed to test the organization’s detection capabilities, response procedures, and overall security posture against advanced persistent threats (APTs). By simulating realistic attack techniques—such as phishing-based initial access, LOLBins abuse, AMSI bypasses, and persistence mechanisms—the report highlights areas of improvement within the Security Operations Center (SOC). Findings and recommendations are provided to enhance detection capabilities, streamline response workflows, and improve the SOC’s readiness against similar future threats.

1.2 Security Effectiveness Metrics (Pre-Test vs. Post-Test)

2. Detection & Analysis

This section details how the attack was initially detected, key indicators of compromise, and the improvements made to enhance threat detection.

2.1 Pre-Test Analysis

Before implementing new detection rules, an initial assessment was conducted to evaluate the effectiveness of the existing security controls and logging configurations. The evaluation revealed that while Sysmon was enabled on endpoints, coverage for key events—such as registry modifications, scheduled task creations, and certain LOLBins executions—was either limited or absent. AMSI logging was inconsistently applied, reducing visibility into PowerShell-based attacks and in-memory executions. Additionally, although basic Splunk queries were in place, there were no targeted detection rules for persistence mechanisms or advanced C2 channels. This pre-test analysis provided a baseline for identifying detection gaps and guided the development of enhanced monitoring strategies deployed during this simulation.

Delivery - Pretest

Exploitation - Pretest

Installation - Pretest

Command and Control (C2) - Pretest

Actions on Objectives (Impact) - Pretest

2.2 Indicators Of Compromise (IOCs)

A list of key artifacts and behaviors observed during the phishing attack, including filenames, processes, network connections, and command-line executions.

2.3 Optimized Detection Rules

This section presents the updated Sysmon configurations and Splunk queries that were implemented to detect malicious activity more effectively.

Sysmon Configuration

Delivery: Detect Malicious Email Attachments and File Drops

    <!-- Detect Suspicious PowerShell Commands -->
    <ProcessCreate onmatch="include">
      <CommandLine condition="contains">IEX</CommandLine>
      <CommandLine condition="contains">DownloadString</CommandLine>
      <CommandLine condition="contains">DownloadFile</CommandLine>
      <CommandLine condition="contains">Invoke-WebRequest</CommandLine>
      <CommandLine condition="contains">Invoke-Expression</CommandLine>
      <CommandLine condition="contains">curl</CommandLine>
      <CommandLine condition="contains">wget</CommandLine>
    </ProcessCreate>

    <!-- Detect Dropped Executables or DLLs in Public/Temp Folders -->
    <FileCreate onmatch="include">
      <TargetFilename condition="contains">\\Users\\Public\\</TargetFilename>
      <TargetFilename condition="end with">.exe</TargetFilename>
      <TargetFilename condition="end with">.dll</TargetFilename>
    </FileCreate>

Exploitation: Detect AMSI Bypass Attempts

  <!-- Event ID 1: Process Creation -->

    <ProcessCreate onmatch="include">
      <Image condition="end with">powershell.exe</Image>
      <CommandLine condition="contains">amsi</CommandLine>
    </ProcessCreate>

    <ProcessCreate onmatch="include">
      <Image condition="end with">powershell.exe</Image>
      <CommandLine condition="contains">bypass</CommandLine>
    </ProcessCreate>

    <ProcessCreate onmatch="include">
      <Image condition="end with">powershell.exe</Image>
      <CommandLine condition="contains">Reflection.Assembly</CommandLine>
    </ProcessCreate>

    <ProcessCreate onmatch="include">
      <Image condition="end with">powershell.exe</Image>
      <CommandLine condition="contains">Add-Type</CommandLine>
    </ProcessCreate>

    <ProcessCreate onmatch="include">
      <Image condition="end with">powershell.exe</Image>
      <CommandLine condition="regex">.*(New-Object\s+System\.Net\.WebClient|IEX|DownloadString).*</CommandLine>
    </ProcessCreate>


  <!-- Event ID 10: Process Access (Catches memory manipulation attempts like WriteProcessMemory) -->

    <ProcessAccess onmatch="include">
      <SourceImage condition="end with">powershell.exe</SourceImage>
      <TargetImage condition="contains">amsi.dll</TargetImage>
      <GrantedAccess condition="contains">0x1F0FFF</GrantedAccess> <!-- Full access permission often used in process injection -->
    </ProcessAccess>


  <!-- Event ID 8: CreateRemoteThread (Common in memory-based AMSI bypass techniques) -->

    <CreateRemoteThread onmatch="include">
      <SourceImage condition="end with">powershell.exe</SourceImage>
      <TargetImage condition="contains">amsi.dll</TargetImage>
    </CreateRemoteThread>

Installation: Detect Persistence via Registry and Scheduled Tasks

    <!-- Detect Registry Key Modifications (Run & RunOnce Keys) -->
    <RegistryEvent onmatch="include">
      <TargetObject condition="contains">\\Software\\Microsoft\\Windows\\CurrentVersion\\Run</TargetObject>
    </RegistryEvent>
    <RegistryEvent onmatch="include">
      <TargetObject condition="contains">\\Software\\Microsoft\\Windows\\CurrentVersion\\RunOnce</TargetObject>
    </RegistryEvent>

    <!-- Detect Scheduled Task Creation -->
    <ProcessCreate onmatch="include">
      <CommandLine condition="contains">schtasks</CommandLine>
    </ProcessCreate>

C2: Detect Suspicious Network-Based C2 Activity

    <!-- Detect Connections to Known C2 Ports -->
    <NetworkConnect onmatch="include">
      <DestinationPort condition="is">4444</DestinationPort>
      <DestinationPort condition="is">1337</DestinationPort>
      <DestinationPort condition="is">8080</DestinationPort>
      <DestinationPort condition="is">9001</DestinationPort>
    </NetworkConnect>

    <!-- Detect Connections to High Ports Above 1024 (Excluding 80, 443, 8443) -->
    <NetworkConnect onmatch="include">
      <DestinationPort condition="greater_than">1024</DestinationPort>
      <DestinationPort condition="is not">80</DestinationPort>
      <DestinationPort condition="is not">443</DestinationPort>
      <DestinationPort condition="is not">8443</DestinationPort>
    </NetworkConnect>

Actions on Objectives: Detect Forced System Impact Demonstration

    <!-- Detect Forced Execution of Microsoft Edge (msedge.exe) -->
    <ProcessCreate onmatch="include">
      <Image condition="end with">msedge.exe</Image>
    </ProcessCreate>

Splunk Queries

Delivery: Detect Malicious Email Attachments and File Drops

(
  index=sysmon_logs EventID=1
  (CommandLine="*IEX*" AND (CommandLine="*DownloadString*" OR CommandLine="*DownloadFile*" OR CommandLine="*Invoke-WebRequest*" OR CommandLine="*Invoke-Expression*" OR CommandLine="*curl*" OR CommandLine="*wget*"))
)
OR
(
  index=sysmon_logs EventID=11
  (TargetFilename="*\\Users\\Public\\*.exe" OR TargetFilename="*\\Users\\Public\\*.dll")
)

Exploitation: Detect AMSI Bypass Attempts

index=sysmon_logs EventID=1 Image="*\\powershell.exe" (
  CommandLine="*amsi*"
  OR CommandLine="*bypass*"
  OR CommandLine="*Reflection.Assembly*"
  OR CommandLine="*Add-Type*"
  OR CommandLine="*DownloadString*"
  OR CommandLine="*IEX*"
)

Installation: Detect Persistence via Registry and Scheduled Tasks

(
  index=sysmon_logs EventID=13
  (TargetObject="*\\Software\\Microsoft\\Windows\\CurrentVersion\\Run*" OR TargetObject="*\\Software\\Microsoft\\Windows\\CurrentVersion\\RunOnce*")
)
OR
(
  index=sysmon_logs EventID=1
  CommandLine="*schtasks*"
)

C2: Detect Suspicious Network-Based C2 Activity

index=sysmon_logs EventID=3
(
  (DestinationPort IN (4444, 1337, 8080, 9001))
  OR
  (
    DestinationPort > 1024
    AND NOT (DestinationPort IN (80, 443, 8443))
  )
)

Actions on Objectives: Detect Forced System Impact Demonstration

index=sysmon_logs EventID=1
Image="*\\msedge.exe"

2.4 Response Workflow (NIST Framework)

An overview of the incident response process, structured according to the NIST Cybersecurity Framework (CSF), covering detection, analysis, containment, eradication, and recovery.

Note: Windows Defender was temporarily disabled on the victim VM only to allow execution of the simulated payload. This was done solely within the controlled home lab environment for testing purposes and does not reflect enterprise security configurations.

2.5 MITRE ATT&CK Mapping

A mapping of the observed attack techniques to the MITRE ATT&CK framework, demonstrating how each tactic was detected and highlighting areas for improvement.

3. Mitigation & Response

This section outlines the response actions taken after detecting the phishing attack, including containment, eradication, and recommendations for strengthening defenses.

3.1 Post-Test Analysis

Delivery - Post-Test

Exploitation - Post-Test

Installation - Post-Test

Command and Control (C2) - Post-Test

Actions on Objectives (Impact) - Post-Test

3.2 Example Containment And Eradication Procedures

A step-by-step breakdown of the immediate response actions taken to isolate the compromised system, remove the phishing payload, and prevent reinfection.

🔹 Containment Strategy  Objective: Prevent further attacker activity by isolating compromised systems, terminating malicious processes, and blocking C2 communications.

✔ Step 1: Isolate Affected Host

• Use LimaCharlie to isolate the compromised endpoint:

  limacharlie isolate --sid <sensor_id_of_bob>

• Verify isolation through LimaCharlie console and Splunk network logs.

✔ Step 2: Terminate Malicious Processes

• Kill processes associated with the attack (LOLBins and payloads):

  limacharlie terminate --sid <sensor_id_of_bob> --process mshta.exe limacharlie terminate --sid <sensor_id_of_bob> --process rundll32.exe limacharlie terminate --sid <sensor_id_of_bob> --process kevin_beacon.exe

✔ Step 3: Block C2 Channels

• Apply firewall rules to block outbound traffic to attacker-controlled IPs and ports:

  netsh advfirewall firewall add rule name="Block FIN7 C2" dir=out action=block remoteip=10.26.0.9

• Use Splunk to verify no active connections:

  index=sysmon_logs EventID=3 (DestinationIp="10.26.0.9" OR DestinationPort=443 OR DestinationPort=54321)

🔹 Eradication Strategy  Objective: Remove persistence mechanisms, clean the system of malware artifacts, and ensure no residual attacker footholds remain.

✔ Step 1: Remove Malicious Registry Keys & Scheduled Tasks

• Remove detected persistence:

  # Remove registry run key Remove-ItemProperty -Path "HKCU:\Software\Microsoft\Windows\CurrentVersion\Run" -Name "AdobeFakeUpdate" -ErrorAction SilentlyContinue # Remove scheduled task if present schtasks /delete /tn "AdobeFakeUpdate" /f

• Verify removal:

  Get-ItemProperty -Path "HKCU:\Software\Microsoft\Windows\CurrentVersion\Run" -Name "AdobeFakeUpdate" -ErrorAction SilentlyContinue schtasks /query /tn "AdobeFakeUpdate"

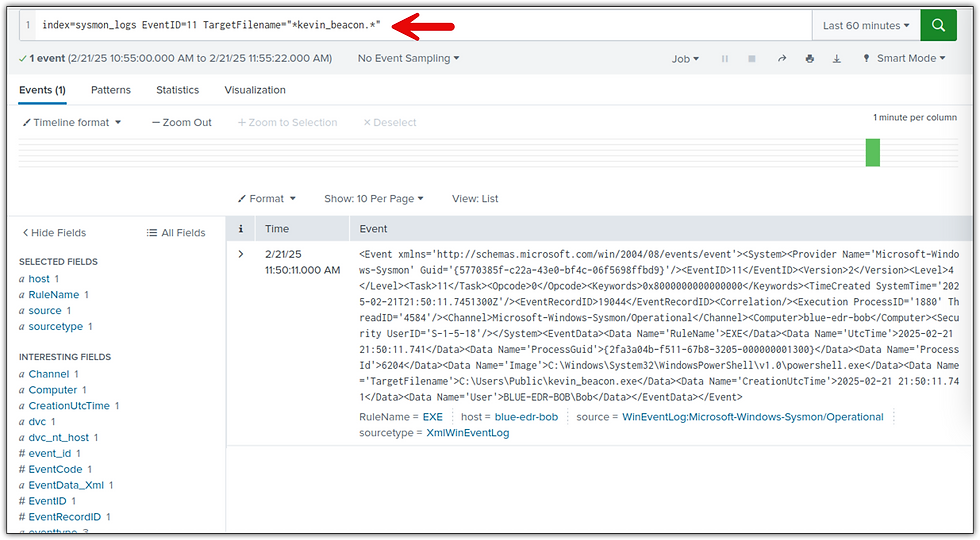

✔ Step 2: Locate & Delete Dropped Files

• Search and remove malicious files:

  Get-ChildItem -Path C:\Users\Public -Filter "kevin_beacon.*" -Recurse | Remove-Item -Force

✔ Step 3: Conduct a Full System Scan

• Use Windows Defender to ensure full malware removal:

  Start-MpScan -ScanType FullScan

✔ Step 4: Review PowerShell Execution History

• Investigate historical PowerShell commands:

  Get-History | Select-String "Invoke-WebRequest"

3.3 Incident Response Playbook Sample

A structured response plan that details predefined actions SOC analysts can take when handling similar phishing incidents in the future.

Title: Endpoint Threat Mitigation Playbook

Purpose: This playbook provides a structured methodology for detecting and mitigating endpoint threats related to FIN7-style attack techniques. It focuses on initial access, execution, persistence, and command & control (C2) activities, leveraging endpoint detection tools such as Sysmon, Splunk, YARA, and LimaCharlie EDR.

▸ Key Playbook Actions

• Detect: Use Sysmon and Splunk queries to identify suspicious execution (PowerShell, LOLBins) and persistence mechanisms (registry keys, scheduled tasks).

• Analyze: Perform YARA scans on suspicious files and review process and file creation logs to confirm threat presence.

• Contain: Isolate the affected endpoint using LimaCharlie and block further malicious execution through Group Policy and process termination.

• Eradicate: Remove registry keys, delete malicious files, and clean up scheduled tasks to eliminate persistence.

• Restore: Re-enable security controls, audit policies, and generate a comprehensive incident report for documentation and future prevention.

📄 Full Playbook: See Appendix 5.2 – Endpoint Threat Mitigation Playbook

4. Findings & Recommendations

This section summarizes key observations from the assessment, provides security recommendations, and outlines areas for future improvement.

4.1 Findings

A summary of security gaps identified during the attack simulation, as well as improvements in detection and response capabilities.

• Detection significantly improved but was still slower than attack execution. Prior to implementing detection rules, payload execution went unnoticed. Post-test enhancements with Sysmon and Splunk allowed detection within 1 minute of execution. However, the attacker achieved a reverse shell within 5 seconds of LNK file execution, highlighting the need for faster detection or pre-execution blocking measures.

• Privilege escalation and persistence attempts were effectively mitigated. The Red Team was unable to escalate privileges or establish persistence post-test due to improved detection of registry modifications and scheduled task creations. These detections allowed immediate remediation, preventing attacker foothold.

• Threat containment improved with LimaCharlie but was manually triggered. While the SOC successfully contained the compromised host within 5 minutes post-detection, the response was manual. Automated containment workflows could reduce response times further, potentially preventing successful payload execution.

• Detection correlation improved but lacked full attack chain visibility. SIEM alerts for different stages (execution, persistence attempts, and C2 communication) were triggered separately. Although detection coverage improved, these events were not automatically correlated into a single incident timeline, requiring manual investigation.

• C2 detection improved with targeted network rules. Initial tests failed to detect command-and-control activity. Post-test improvements, including specific rules for known C2 ports and abnormal high-port connections, enabled the SOC to detect and respond to C2 attempts, including protocol switches between HTTPS and TCP.

• User action remains a significant initial access risk. Despite detection and containment improvements, the attack’s success relied on a user opening the malicious LNK file. User awareness and phishing simulation programs remain critical to reducing this initial risk vector.

4.2 Recommendations

Actionable security measures that should be implemented to enhance attack detection, incident response efficiency, and overall SOC maturity.

• Implement pre-execution blocking measures: Utilize application whitelisting, controlled folder access, and restrict execution of LNK files from email attachments to prevent initial payload execution.

• Automate containment workflows: Integrate automated host isolation triggers within the SIEM to reduce containment time to seconds rather than minutes.

• Enhance correlation of multi-stage attacks: Develop Splunk correlation searches that link initial access, execution, and C2 events to present a full attack chain view, enabling faster analyst response.

• Increase endpoint visibility and hardening: Expand Sysmon configurations to include parent-child process relationships and command-line logging for common LOLBins to catch subtle execution chains.

• Conduct regular phishing awareness training: Reduce the likelihood of user-initiated attacks by implementing routine phishing simulations and security awareness programs.

• Continuously test and tune detection rules: Regularly validate and refine detection rules to adapt to evolving threat actor techniques, ensuring minimal false positives while maintaining coverage.

• Evaluate behavioral-based detection tools: Consider deploying machine-learning-driven EDR solutions that can detect anomalous behavior even before signature-based detections trigger.

4.3 Lessons Learned

A reflection on what worked well, what was initially missed, and how the incident response process can be improved based on the assessment results.

Detection Gaps

• Delayed detection of initial payload execution: Although detection improved post-test, the payload still executed before alerts triggered, enabling the attacker to gain a reverse shell within seconds.

• Missed early C2 communications: Outbound connections to malicious ports initially evaded detection, highlighting the need for enhanced network telemetry.

• Limited event correlation: While individual attack stages were detected, events were not automatically correlated into a single alert, slowing the analyst’s ability to identify the full attack chain.

• Incomplete detection of LOLBins abuse: Initial configurations did not flag executions of common living-off-the-land binaries (LOLBins), such as mshta.exe and rundll32.exe, until dedicated detection rules were implemented.

• Insufficient persistence detection: Registry-based persistence attempts went unnoticed during the initial phase, requiring more comprehensive registry monitoring.

Response Delays

• Manual containment slowed response: Host isolation relied on manual intervention, taking approximately 5 minutes post-detection—too slow to prevent immediate attacker objectives.

• Lack of automated incident triage: SOC analysts had to manually investigate and validate alerts, delaying coordinated response actions.

• Delayed user notification: No immediate communication was sent to the user of the compromised endpoint, allowing continued interaction with the payload.

4.4 Next Steps

To address the identified gaps and enhance overall security posture, the following prioritized actions are recommended:

Immediate Priorities (1-3 months)

• Automate host isolation: Implement SIEM-to-EDR integration to enable automatic host isolation within seconds of detection.

• Refine SIEM correlation rules: Develop Splunk correlation searches that consolidate execution, persistence, and C2 events into a single high-confidence alert.

• Improve endpoint visibility: Expand Sysmon configurations to capture parent-child process relationships and command-line arguments.

• Enhance user awareness: Conduct phishing simulations and awareness training to reduce user-initiated compromises.

Mid-term Priorities (4-6 months)

• Deploy application whitelisting: Use tools like AppLocker to prevent unauthorized file executions.

• Extend log retention: Increase Splunk and Sysmon log retention to 90 days for better incident investigation and trend analysis.

• Improve network monitoring: Enable DNS and firewall logging to detect early-stage C2 traffic.

Long-term Priorities (7-12 months)

• Implement network segmentation: Limit attacker movement by isolating critical systems.

• Adopt behavioral detection tools: Evaluate machine learning-driven EDR solutions capable of detecting abnormal user and system behaviors.

• Conduct regular detection validation: Schedule biannual red team simulations and blue team drills to ensure detection rules remain effective.

➡️ Overall Goal: Enhance detection speed to under 30 seconds, reduce containment times to under 1 minute, and improve SOC response coordination.

5. Appendices

5.1 Incident Response & Containment Frameworks

The following resources provide industry-recognized guidelines for containment, eradication, and incident response. These frameworks align with best practices and can be used to refine detection strategies, automate response workflows, and improve SOC readiness.

🔹 MITRE ATT&CK – Containment Strategies  🔗 https://attack.mitre.org/tactics/TA0040/  Covers containment tactics used to prevent adversary actions from escalating, helping SOC teams prioritize defensive actions.

🔹 NIST Incident Response Guide (SP 800-61 Rev. 2)  🔗 https://csrc.nist.gov/publications/detail/sp/800-61/rev-2/final  An official framework for incident handling, including best practices for containment, eradication, and recovery.

🔹 SANS Incident Response Process  🔗 https://www.sans.org/posters/incident-handlers-handbook/  A step-by-step guide for incident handlers, focusing on containment, forensic analysis, and incident resolution.

🔹 Microsoft Security Response Center (MSRC) – Incident Response Playbooks  🔗 https://learn.microsoft.com/en-us/security/compass/incident-response-playbooks  Provides structured playbooks for containing phishing, malware, and other security incidents in enterprise environments.

5.2 Playbook - Endpoint Threat Mitigation Playbook

Version: 1.0

Author: TrilloSec Last Updated: 2025-02-20

1️⃣ Overview

Purpose:

This playbook provides a structured methodology for detecting and mitigating endpoint threats related to FIN7-style attack techniques. It focuses on initial access, execution, persistence, and command & control (C2) activities, leveraging endpoint detection tools such as Sysmon, Splunk, YARA, and LimaCharlie EDR.

Scope:

• Focused entirely on endpoint threat detection (network detection to be covered in future experiments).

• Emphasizes detection and response for techniques including LOLBins abuse, AMSI bypass, persistence mechanisms, and C2 communications.

Security Domains Covered:

• Endpoint Detection & Response (EDR) – LimaCharlie

• Host-based Logging & Monitoring – Sysmon + Splunk

• Threat Hunting – YARA for memory and file scans

• Incident Handling – NIST 800-61 guidance for detection, containment, and eradication

2️⃣ Pre-Incident Preparation

Baseline Security Controls:

3️⃣ Detection & Investigation Workflow

Step 1: Detect Execution (T1204, T1218)

🔎 1.1 Detect Initial Access (LNK Execution)

index=sysmon_logs EventID=1 Image="*cmd.exe" CommandLine="*powershell*"

Rationale: Detects user interaction triggering malicious payloads.

🔎 1.2 Detect LOLBins Execution

index=sysmon_logs EventID=1 (Image="*mshta.exe" OR Image="*rundll32.exe" OR Image="*wmic.exe" OR Image="*regsvr32.exe")

Rationale: Identifies abuse of native Windows binaries to execute payloads.

🔎 1.3 Use YARA to Scan for Malicious Scripts

# Transfer suspected file from endpoint
scp blue-edr-bob@10.26.00.105:/C/Users/Public/payload.ps1 /mnt/analysis/

# Scan with YARA
yara -r rules/fin7.yara /mnt/analysis/payload.ps1

Step 2: Investigate & Contain

🔎 2.1 Investigate AMSI Bypass Attempts

index=sysmon_logs EventID=1 CommandLine="*amsi.dll*"

🔒 2.2 Isolate Compromised Host

limacharlie isolate --sid <sensor_id_of_bob>

🛡️ 2.3 Block LOLBins Execution via Group Policy (Remote or On-Host)

Set-ItemProperty -Path "HKLM:\SOFTWARE\Microsoft\Windows\CurrentVersion\Policies\System" -Name "EnableLUA" -Value 0

Step 3: Investigate Persistence (T1547)

🔎 3.1 Detect File Drops (Beacon Payload)

index=sysmon_logs EventID=11 TargetFilename="*kevin_beacon.*"

🔎 3.2 Detect Registry-based Persistence

index=sysmon_logs EventID=13 TargetObject="*Run\\*"

🔎 3.3 Investigate Scheduled Tasks

Get-ScheduledTask | Where-Object { $_.RegistrationInfo.Date -gt (Get-Date).AddDays(-1) }

Step 4: Eradication & Recovery

🚨 4.1 Terminate Malicious Processes

limacharlie terminate --sid <sensor_id_of_bob> --process mshta.exe
limacharlie terminate --sid <sensor_id_of_bob> --process rundll32.exe

🧹 4.2 Remove Malicious Registry Keys

Remove-ItemProperty -Path "HKCU:\Software\Microsoft\Windows\CurrentVersion\Run" -Name "AdobeFakeUpdate" -ErrorAction SilentlyContinue

🗑️ 4.3 Clean Up Scheduled Tasks

schtasks /delete /tn "AdobeFakeUpdate" /f

🔄 4.4 Re-enable Security Controls

Set-ItemProperty -Path "HKLM:\Software\Microsoft\Windows\CurrentVersion\Policies\System" -Name "EnableLUA" -Value 1
AuditPol /set /category:"Logon/Logoff" /success:enable /failure:enable

📄 4.5 Generate Incident Report

splunk search 'index=sysmon_logs host="blue-edr-bob"' | outputreport --title "FIN7 Detection Report" --format pdf

5.3 YARA Rules

Delivery: Detect Malicious Email Attachments and File Drops

rule Delivery_Detect_Malicious_Email_Attachments_and_File_Drops
{
    meta:
        author = "Your Name"
        description = "Detects PowerShell in-memory attacks or dropped executables/DLLs in common directories like Public and Temp."
        threat_level = 3
        date = "2024-02-22"

    strings:
        // PowerShell command-line patterns
        $iex = "IEX"
        $download1 = "DownloadString"
        $download2 = "DownloadFile"
        $invoke_web = "Invoke-WebRequest"
        $invoke_expr = "Invoke-Expression"
        $curl = "curl"
        $wget = "wget"

        // File drop paths
        $public_path = "\\Users\\Public\\"
        $exe_ext = ".exe"
        $dll_ext = ".dll"

    condition:
        (
            any of ($iex, $download1, $download2, $invoke_web, $invoke_expr, $curl, $wget)
            and filesize < 2MB  // Optional size filter for scripts
        )
        or
        (
            ( $public_path )
            and ( $exe_ext or $dll_ext )
        )
}

Exploitation: Detect AMSI Bypass Attempts

rule AMSI_Bypass_Attempt
{
    meta:
        description = "Detects AMSI bypass attempts via PowerShell commands or process memory modifications targeting amsi.dll"
        author = "TrilloSec"
        date = "2025-02-22"
        mitre_techniques = "T1059.001, T1562.001, T1055"

    strings:
        // PowerShell command-line indicators
        $amsi = "amsi" nocase
        $bypass = "bypass" nocase
        $reflection = "Reflection.Assembly" nocase
        $add_type = "Add-Type" nocase
        $invoke_expression = "Invoke-Expression" nocase
        $new_object = "New-Object System.Net.WebClient" nocase
        $iex = "IEX" nocase
        $downloadstring = "DownloadString" nocase

        // Process memory modification indicators
        $virtual_protect = "VirtualProtect" nocase
        $write_process_memory = "WriteProcessMemory" nocase
        $amsi_dll = "amsi.dll" nocase

    condition:
        any of ($amsi, $bypass, $reflection, $add_type, $invoke_expression, $new_object, $iex, $downloadstring)
        or any of ($virtual_protect, $write_process_memory, $amsi_dll)
}

Installation: Detect Persistence via Registry and Scheduled Tasks

rule Persistence_Registry_RunKeys_and_Scheduled_Tasks
{
    meta:
        description = "Detects persistence via modifications to Run/RunOnce registry keys and the creation of scheduled tasks."
        author = "TrilloSec"
        date = "2025-02-22"
        mitre_techniques = "T1547.001, T1053.005"
        threat_level = 2

    strings:
        // Registry keys for persistence
        $run_key = "\\Software\\Microsoft\\Windows\\CurrentVersion\\Run"
        $runonce_key = "\\Software\\Microsoft\\Windows\\CurrentVersion\\RunOnce"

        // Scheduled task creation commands
        $schtasks_cmd = "schtasks" nocase

    condition:
        any of ($run_key, $runonce_key)
        or $schtasks_cmd
}

C2: Detect Suspicious Network-Based C2 Activity

rule C2_Detect_Suspicious_Network_Connections
{
    meta:
        description = "Detects likely C2 activity via outbound connections to known C2 ports or uncommon high ports."
        author = "TrilloSec"
        date = "2025-02-22"
        mitre_techniques = "T1071.001, T1071.004"
        threat_level = 1

    strings:
        // Known C2 ports
        $port_4444 = ":4444"
        $port_1337 = ":1337"
        $port_8080 = ":8080"
        $port_9001 = ":9001"

        // Common excluded ports (for context, not matched directly)
        $excluded_80 = ":80"
        $excluded_443 = ":443"
        $excluded_8443 = ":8443"

    condition:
        // Matches known C2 ports
        any of ($port_4444, $port_1337, $port_8080, $port_9001)
        or
        // Matches any port above 1024 excluding common ports
        (
            for any i in (1025..65535) : (
                (uint16(0)  i) and
                not any of ($excluded_80, $excluded_443, $excluded_8443)
            )
        )
}

Actions on Objectives: Detect Forced System Impact Demonstration

rule Detect_Forced_Browser_Execution
{
    meta:
        description = "Detects suspicious forced browser launches, like rickrolling or redirect attacks."
        author = "TrilloSec"
        date = "2025-02-22"
        mitre_techniques = "T1491.001"
        threat_level = 3

    strings:
        $msedge_process = "msedge.exe" nocase

    condition:
        $msedge_process
}

5.4 LimaCharlie EDR Rules

Delivery: Detect Malicious Email Attachments and File Drops

op: or
events:
  - NEW_PROCESS
  - FILE_WRITTEN
rules:
  - op: and
    rules:
      - op: contains
        path: event/PROCESS_CMD_LINE
        value: IEX
      - op: matches
        path: event/PROCESS_CMD_LINE
        re: ".*(DownloadString|DownloadFile|Invoke\\-WebRequest|Invoke\\-Expression|curl|wget).*"

  - op: matches
    path: event/FILE_PATH
    re: ".*(\\\\Users\\\\Public\\\\).*(\\.exe|\\.dll)$"

response:
  - action: report
    name: "Delivery: Detect Malicious Email Attachments and File Drops"
    priority: 3
    description: "Detects delivery techniques via PowerShell in-memory attacks or dropped executables/DLLs in common directories like Public and Temp."

Exploitation: Detect AMSI Bypass Attempts

op: or
events:
  - NEW_PROCESS
  - PROCESS_MEMORY_MODIFICATION
rules:
  - op: and
    rules:
      - op: is
        path: event/PROCESS_NAME
        value: powershell.exe
      - op: matches
        path: event/PROCESS_CMD_LINE
        re: ".*(amsi|bypass|Reflection\\.Assembly|Add-Type|[Ii]nvoke-Expression).*"

  - op: and
    rules:
      - op: is
        path: event/PROCESS_NAME
        value: powershell.exe
      - op: matches
        path: event/PROCESS_CMD_LINE
        re: ".*(New-Object\\s+System\\.Net\\.WebClient|IEX|DownloadString).*"

  - op: and
    rules:
      - op: is
        path: event/EVENT_TYPE
        value: PROCESS_MEMORY_MODIFICATION
      - op: contains
        path: event/PROCESS_NAME
        value: powershell.exe
      - op: matches
        path: event/PROCESS_CMD_LINE
        re: ".*(VirtualProtect|WriteProcessMemory|amsi.dll).*"

response:
  - action: report
    name: "Detection: AMSI Bypass Attempt"
    priority: 1
    description: "Detects AMSI bypass attempts via PowerShell commands or process memory modifications targeting amsi.dll."

Installation: Detect Persistence via Registry and Scheduled Tasks

op: or
events:
  - REGISTRY_KEY_WRITTEN
  - NEW_PROCESS
rules:
  - op: and
    rules:
      - op: is
        path: event/EVENT_TYPE
        value: REGISTRY_KEY_WRITTEN
      - op: contains
        path: event/REG_KEY
        value: "\\Software\\Microsoft\\Windows\\CurrentVersion\\Run"

  - op: and
    rules:
      - op: is
        path: event/EVENT_TYPE
        value: REGISTRY_KEY_WRITTEN
      - op: contains
        path: event/REG_KEY
        value: "\\Software\\Microsoft\\Windows\\CurrentVersion\\RunOnce"

  - op: and
    rules:
      - op: is
        path: event/EVENT_TYPE
        value: NEW_PROCESS
      - op: contains
        path: event/PROCESS_CMD_LINE
        value: schtasks

response:
  - action: report
    name: "Installation: Detect Persistence via Registry and Scheduled Tasks"
    priority: 2
    description: "Detects common persistence methods via modifications to Run/RunOnce registry keys and the creation of scheduled tasks."

C2: Detect Suspicious Network-Based C2 Activity

op: or
events:
  - NETWORK_CONNECT
rules:
  - op: and
    rules:
      - op: is
        path: event/EVENT_TYPE
        value: NETWORK_CONNECT
      - op: matches
        path: event/REMOTE_PORT
        re: "^(4444|1337|8080|9001)$"

  - op: and
    rules:
      - op: is
        path: event/EVENT_TYPE
        value: NETWORK_CONNECT
      - op: matches
        path: event/REMOTE_PORT
        re: "^([1-9][0-9]{3,5}|[2-9][0-9]{2,4}|102[5-9]|10[3-9][0-9]|1[1-9][0-9]{2}|[2-9][0-9]{3,4})$"  # Matches ports above 1024 excluding 80, 443, 8443

response:
  - action: report
    name: "C2: Detect Suspicious Network-Based C2 Activity"
    priority: 1
    description: "Detects likely C2 activity via outbound connections to known C2 ports or uncommon high ports."

Actions on Objectives: Detect Forced System Impact Demonstration

event: NEW_PROCESS
op: contains
path: event/PROCESS_NAME
value: msedge.exe

response:
  - action: report
    name: "Detected Force Browser Execution"
    priority: 3
    description: "Detects suspicious forced browser launches, like rickrolling or redirect attacks."

TL;DR

Blue Team improved endpoint threat detection with:

✅ 100% detection of LOLBins and AMSI bypass attempts.

✅ <1 min detection time for C2 activity and payload execution.

✅ 5 min containment post-detection, reducing attacker dwell time.

✅ $58K estimated financial risk reduction per incident.

Download PDF:

Other Reports in This Project

✔ Red Team: Simulated a FIN7-inspired endpoint attack using LNK payloads, PowerShell execution, and C2 channels to test detection gaps.

✔ Blue Team: Developed Sysmon, Splunk, and LimaCharlie EDR detection rules, reducing detection time to under 1 minute and containment to 5 minutes.

✔ Purple Team: Quantified risk reduction of $58K per incident, aligned defenses with NIST 800-53, ISO 27001, and improved SOC response efficiency.

✔ Setup Guide: Configured attack and defense environments with Gophish, Metasploit, Sysmon, and Splunk for consistent, repeatable testing.
